  • Sliding Glass Door C-Tab Steel Ball Bearing Roller Assembly, 1-1/4 in.

  • PRIME LINE PRODUCTS
  • 5.75 ea.

  • Related Items

  • D 1526
    629543
    049793015266
    50
  •

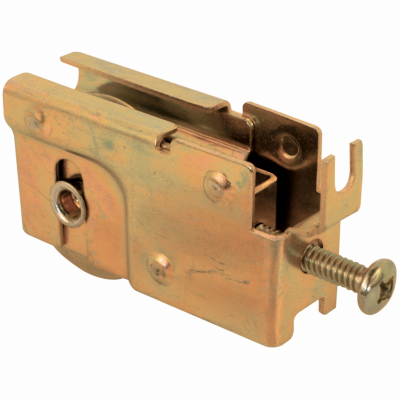

  • Sliding glass door roller assembly, 1-1/4" steel ball bearing roller with adjustable steel housing, Housing dimensions: thickness 23/32 ", length 2-5/16", height 1-3/16" and an overall thickness of 25/32". Carded.
    This is a C-tab patio door roller assembly with a 1-1/4 in. diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 23/32 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in., and is most often used by Solar Industries and a variety of other patio door manufacturers.
    • Used by Solar Industries and several other metal framed patio door manufacturers
    • 1-1/4 in. diameter roller
    • C-tab housing with rear adjust
    • Steel housing and ball bearing roller
    US
    0.95
    3.75
    5.40
    4.10
    3.80
    5.70
